Antiabrasive conveyor belts

Abrasion-resistant belts are designed to withstand wear, abrasion, cutting, and aging in harsh and demanding conditions.

Order Now

Applications

Abrasion-resistant conveyor belts are designed for transporting materials such as lime, cement, concrete, coke, clinker, coal, inert materials, minerals, glass shards, salt, sand, and similar materials in medium or heavy pieces. The number of EP plies in the belt depends on the material being transported.

Types

Depending on the protective rubber layer, the belts are divided into:

DIN 22102 – Y: For transporting medium-abrasive materials and materials with sharp edges in smaller pieces.
DIN 22102 – X: For transporting abrasive materials and materials with sharp edges in larger pieces.
DIN 22102 – W: For transporting very abrasive, granular, and bulk materials.

DIN 22104 – E: When an antistatic design is required.

Technical Specifications

Widths Available: 400 mm, 500 mm, 600 mm, 650 mm, 800 mm, 1000 mm, 1200 mm, 1400 mm, 1600 mm, 1800 mm, 2000 mm
Operating Temperature Range: From -35°C to +80°C

Anti-Abrasion Transport Belts

Anti-abrasion belts are the ideal solution for material transport in harsh industrial conditions, where high resistance to abrasion, wear, cutting, and aging from external factors is required. These transport belts, equipped with a rubber cover (protective rubber layer), are made from specialized compounds that ensure long-lasting performance, high durability, and are a perfect solution for transporting heavy and medium-heavy materials.
These belts are designed to operate in a wide temperature range from -35°C to +80°C, making them suitable for various industrial applications. They are ideal for transporting materials such as lime, cement, salt, sand, concrete, coke, clinker, coal, minerals, glass shards, and many other heavy materials.

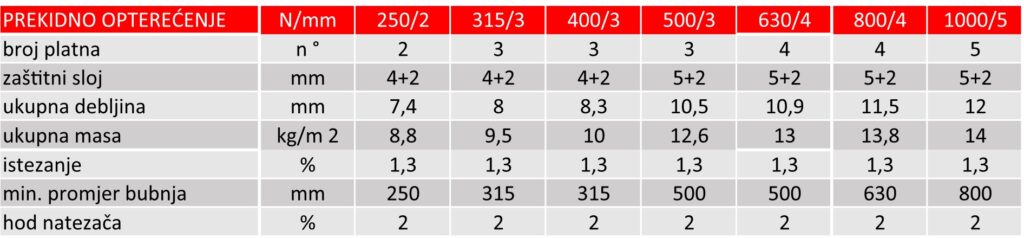

Available Dimensions and Tension Load

Anti-abrasion transport belts are available in standard widths ranging from 400 mm to 2000 mm, allowing for customization to meet different industrial requirements.

Tension Load: The belts are available according to DIN 22102 standards, ensuring precise alignment with industrial requirements for load capacity and belt durability.

Tension Load Classification: Available for a variety of heavy-duty applications, ensuring robust performance.

High-Quality Rubber Layer: Specifically formulated for maximum protection and extended durability in tough industrial environments.

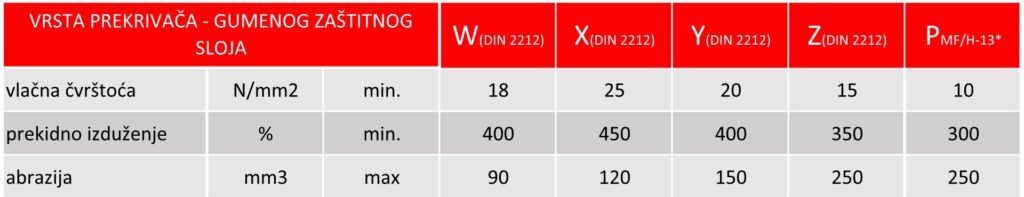

Vrsta prekrivaca gumenog zastitnog sloja 1

Contact Us

If you need an anti-abrasion transport belt for your industrial processes, our team is here to assist you in selecting the optimal solution. Order now and ensure long-lasting and efficient material transport for your business!
